View steel member flange restraints

If you are not sure where your steel design flange restraints are actually located along the members, you can use this tool to show them graphically.

You can show the flange restraints by clicking the button in the side toolbar.

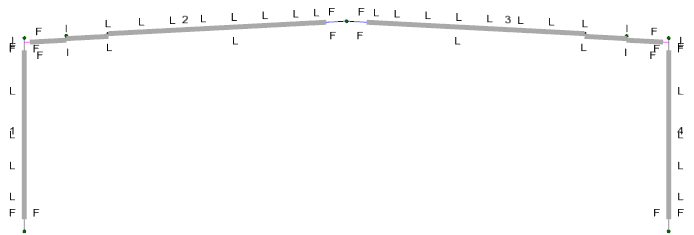

Displays all of the flange restraints that you have specified for each design group. The flange restraints are shown adjacent to their location on the top and bottom flanges.
