Graphical output

The following diagrams are examples of the graphical output that can be obtained from SPACE GASS on the screen or printer.

$image\Portal1.gif$

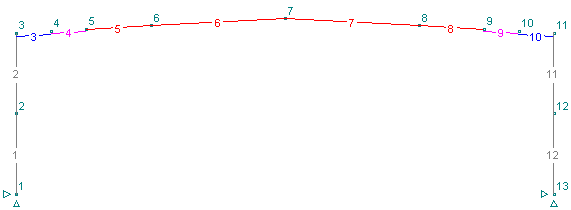

Basic arrangement of nodes and members

$image\Portal2.gif$

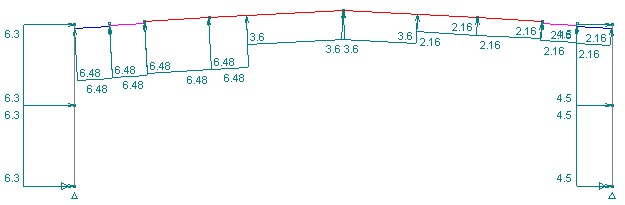

Loading diagram (load case 3)

$image\Portal3.gif$

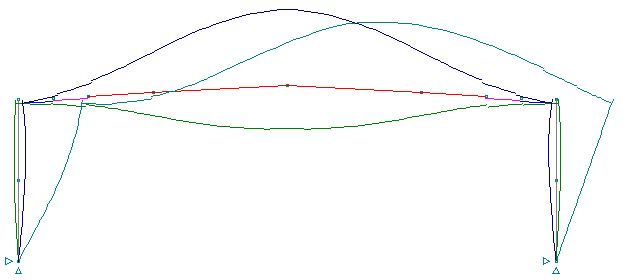

Deflection diagram (load cases 2, 3 and 4)

$image\Portal4.gif$

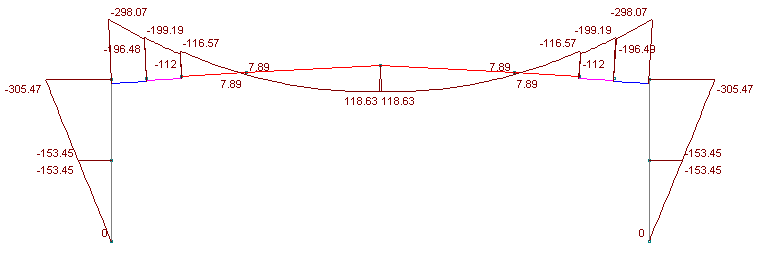

Bending moment diagram (load case 10)

$image\Portal5.gif$

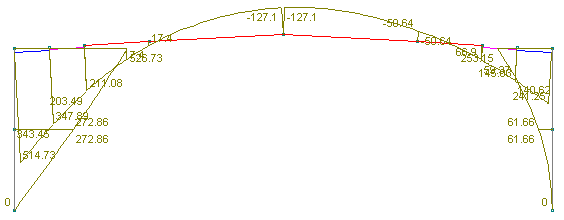

Bending moment diagram (load case 11)

$image\Portal6.gif$

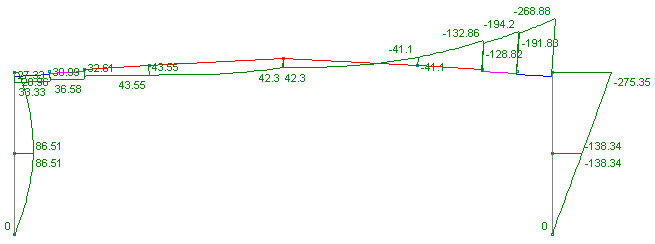

Bending moment diagram (load case 12)

$image\Portal7.gif$

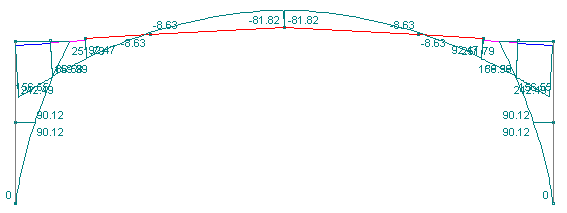

Bending moment diagram (load case 13)

$image\Portal8.gif$

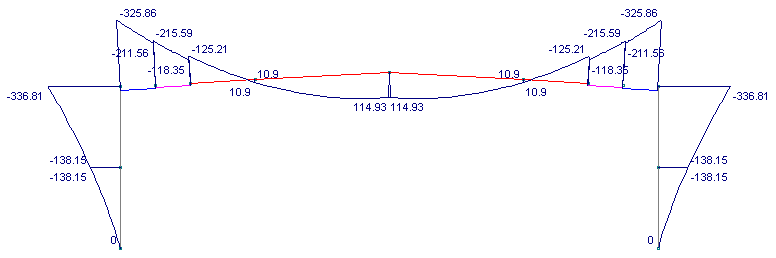

Bending moment diagram (load case 14)

$image\Portal11.gif$

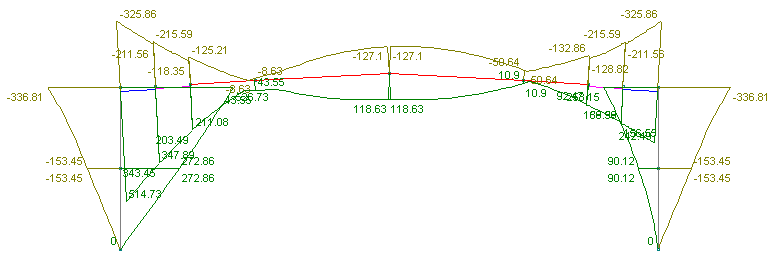

Bending moment diagram envelope (load cases 10-14)

$image\Portal9.gif$

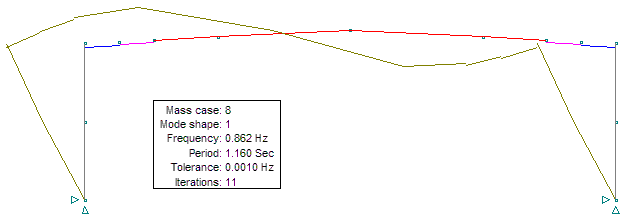

Dynamic mode shape (load case 8)

$image\Portal10.gif$

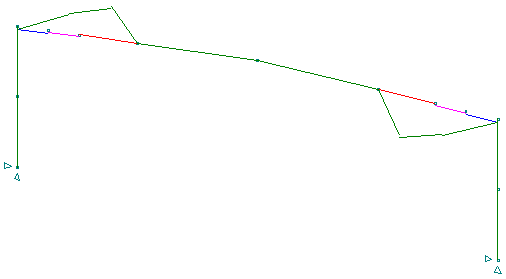

Buckling mode shape (load case 12) – Note the out-of-plane buckling mode
